Power Supply for the AMX 4 2366118-H
| 2366118-H | |
| Used | |
| GE HealthCare | |
| GE HealthCare | |
| GE HealthCare | |
| N/A | |
Add to Wish List
Sign In & Add To Cart
Please select date
Second Opinion Approval Needed
Enter your approval number and submit to add item(s) to cart.
Approval Number
Please enter approval number
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.
Second Opinion Approval Needed
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
Features
- DC input range of 70-150 VDC
- Multi Output Power Supply
- Overvoltage protection
- Short circuit protection with automatic recovery
Frequently purchased with this item
Product Overview

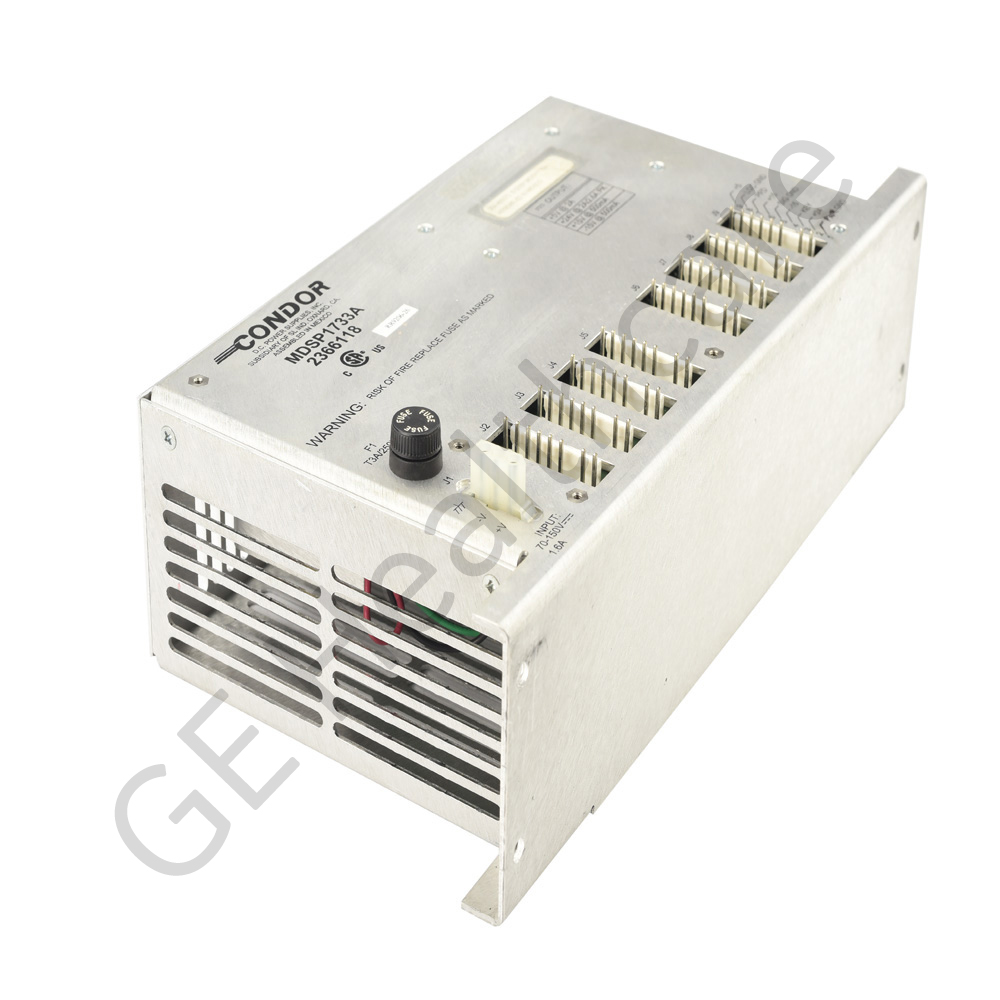

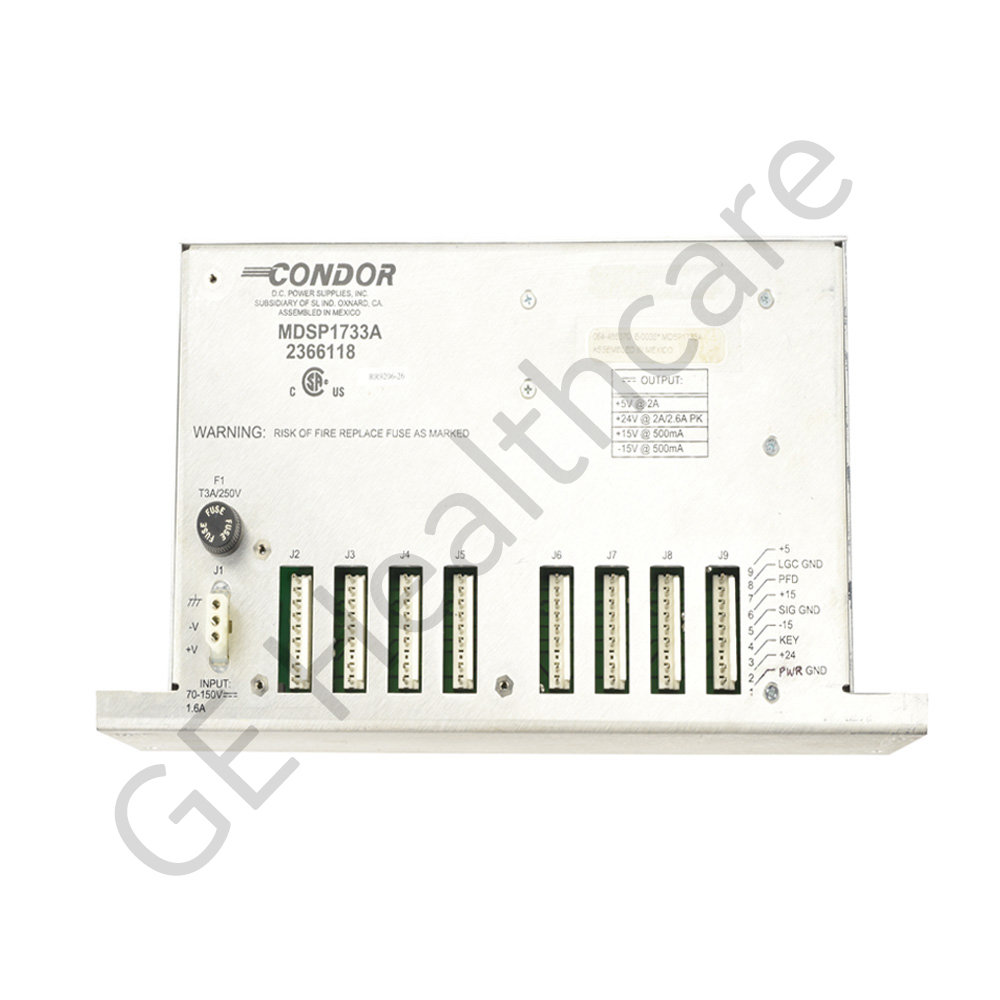

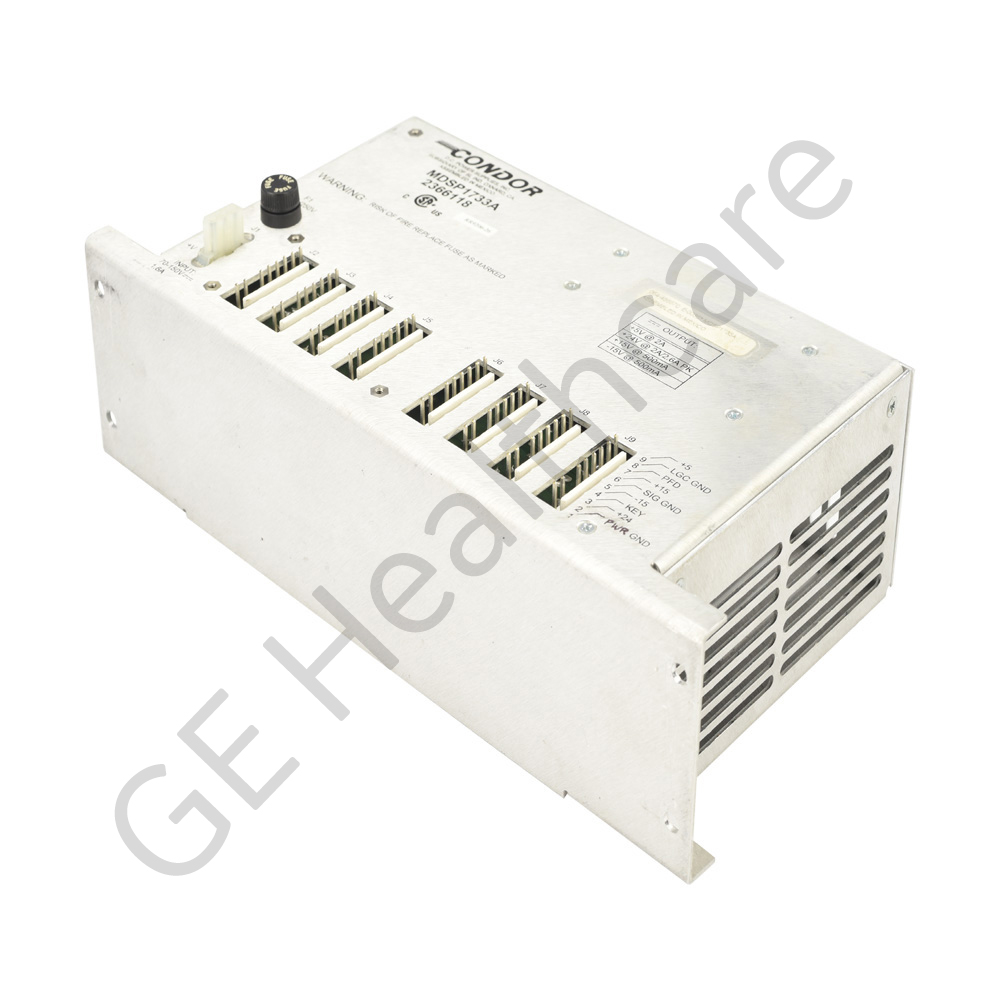

This is a specially designed Low Voltage, Low Energy (LVLE) power supply module which converts higher DC input voltage into lower required DC voltages. It is a new design of the LVLE power supply for use in the AMX 4 mobile x-ray machines which have four outputs of +24 VDC, +5 VDC, +15 VDC and -15 VDC. The power supply accepts input of 70-150 VDC. This DC/DC converter featured with auto output shut down for lower input voltage and automatic recovery when input voltage returns to operating range. The supply comes with short circuit protection on all outputs with automatic recovery. The Power Supply is tested to withstand a Hi-Pot test of 1300 VDC (2V+1000) between the input terminals and chassis. This compact power supply is compatible to be used with GE's Definium AMX700 mobile X-Ray systems.
Additional Features
- Wide operating temperature
- Low output ripple
- High efficiency
- UL 2601 listed
- Compact Size
