Cable Table Gantry Processor J5 to Power Pan - EMC
| 5120649 | |
| 2373436 | |
| New | |
| GE HealthCare | |
| GE HealthCare | |
| GE HealthCare | |
| N/A | |
Add to Wish List
Sign In & Add To Cart
Please select date
Second Opinion Approval Needed
Enter your approval number and submit to add item(s) to cart.
Approval Number
Please enter approval number
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.
Second Opinion Approval Needed
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
Features
- Flexible and thin cable
- Easy to connect and disconnect
- Comes with a ferrite core for EMI suppression
- Shielded high-performance RJ45 plug for demanding EMI/RFI environments
Frequently purchased with this item
Product Overview

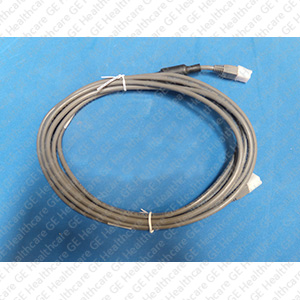

This cable assembly interfaces between the table gantry processor to power pan used in PET/CT System. It comprises of RJ45 plug on either ends with gray snagless boots and a ferrite core at on connector side. Ferrite cores provides an effective way of coupling high-frequency resistance into a cable in order to reduce the common-mode current, and hence the radiation from the cable. RJ45 is a superior shielded Cat5e connector system that allows users to perform factory grade terminations in the field.An unique metallic strain relief provides superior cable retention and a reliable 360° shielding contact. The cable used is a four pair Shielded cable, 24AWG with tinned copper outer shield drain wire and a gray PVC jacket. This cable delivers low voltage analog data and signal transmission within enclosures from controllers and I/O's to devices such as temperature and pressure sensors, relays, valves, thermocouples, actuators, contactors, push buttons and alarms. It is compatible with Discovery 670 Computed Tomography (CT) System.
Additional Features
- Unique 360° strain relief for superior shield termination
Compatible Products
VCT
Lightspeed RT Xtra
Lightspeed RT
Lightspeed Pro 16
Brightspeed Edge
Lightspeed 16
Lightspeed Ultra
Brightspeed Excel
Brightspeed Elite
Lightspeed Plus
Lightspeed QXi
Discovery 670
Discovery ST
Discovery ST (4 Slice)
Discovery ST (8 Slice)
Discovery ST (16 Slice)
Discovery ST (64 Slice)
Discovery ST (128 Slice)
Discovery STE (8 Slice)
Discovery STE (16 Slice)
Equivalent Item(s):
Below is more information on the equivalent item(s). Items without a hyperlink are listed for reference only and are not available for purchase online.
| Equivalent Item(s) | Item Details |
|---|---|
| 2373436 | TGP TO POWER PAN LAN CABLE |
