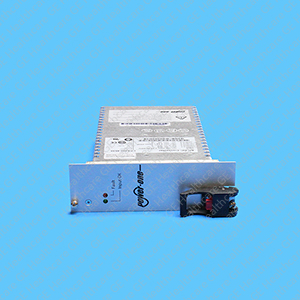

Compact PCI Power Supply 3U 5120955U
| 5120955U | |
| Used | |
| GE HealthCare | |
| GE HealthCare | |
| GE HealthCare | |
| N/A | |
Add to Wish List
Sign In & Add To Cart
Please select date
Second Opinion Approval Needed
Enter your approval number and submit to add item(s) to cart.
Approval Number
Please enter approval number
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.
Second Opinion Approval Needed
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
Features
- Compliant with PICMG® CompactPCI® specifications
- Wide range AC input with PFC
- High efficiency and power density
- Low inrush current
Product Overview
This is a specially designed AC-DC Converters which converts AC input voltage into DC voltage. The input is protected by a transient suppressor (varistor) against surges and transients occurring on the source lines and cover an operating input voltage range of 90 to 264 VAC. It provides four DC outputs are protected against continuous overload, open circuit, and short circuit. This power supply offer high power density in plug in modules that meet the requirements of the PICMG® power interface specification for CompactPCI® systems. It provides important advantages such as flexible output power, high efficiency, excellent reliability, full input to output isolation, negligible inrush current, hot swap capability, soft start, and overtemperature protection. LEDs on the front panel and various warning signals display the status of the converter. The aluminum case acts as a heat sink and as an RFI shield. This power supply can be used with Signa HD 1.5T and Signa HD 3.0T Magnetic Resonance Imaging (MRI) systems. 5120955U
Additional Features
- 4 high current outputs with flexible load distribution
- Inhibit and enable inputs
- Remote sense lines
- Single wire current share function for 3 outputs
- Hot swap capability
- Overtemperature, overvoltage, overcurrent, and overpower protection
