North America Power Cord
| 5148381 | |
| 2162856 | |
| New | |
| GE HealthCare | |
| GE HealthCare | |
| GE HealthCare | |
| N/A | |
Add to Wish List
Sign In & Add To Cart
Please select date
Second Opinion Approval Needed
Enter your approval number and submit to add item(s) to cart.
Approval Number
Please enter approval number
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.
Second Opinion Approval Needed
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
Features
- Underwriters Laboratories (UL) certified for US and Canada
- RoHS compliant
- Safe to use
- Field Replacement Unit (FRU) - can be removed and replaced quickly and easily
Frequently purchased with this item
Product Overview

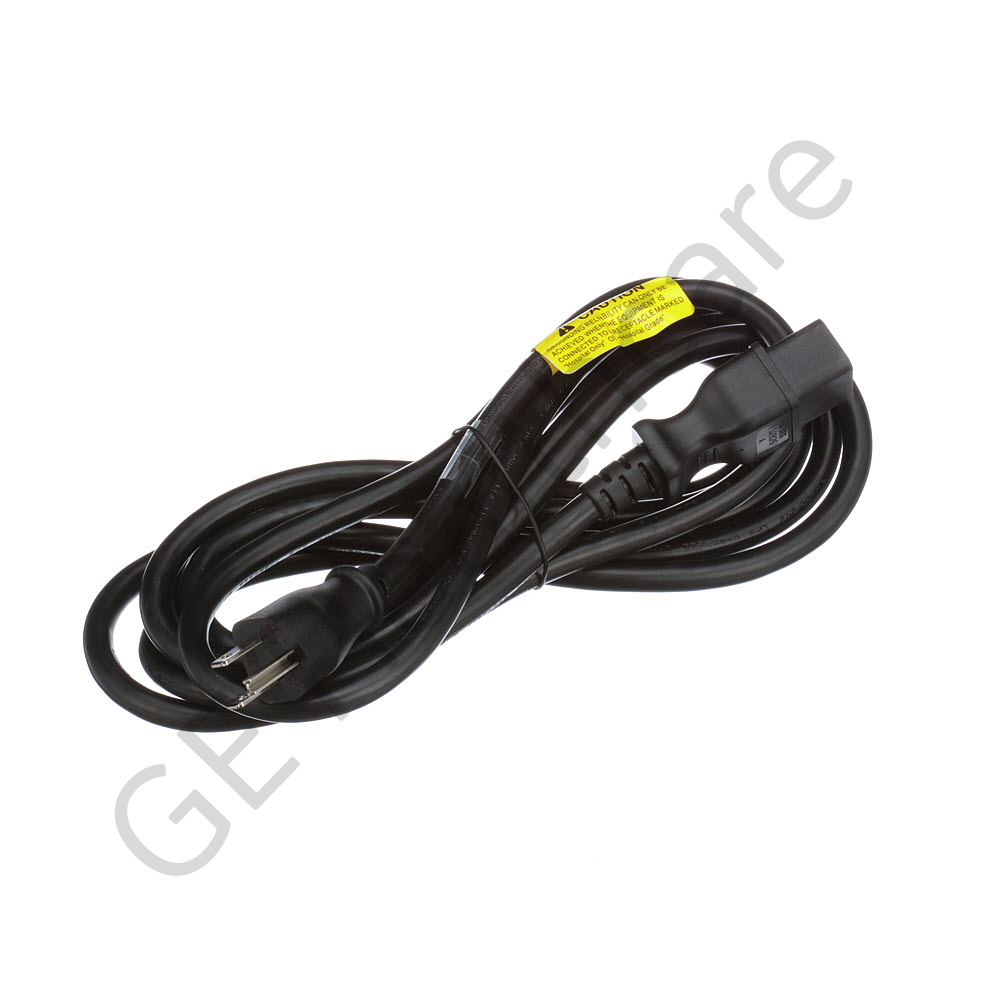

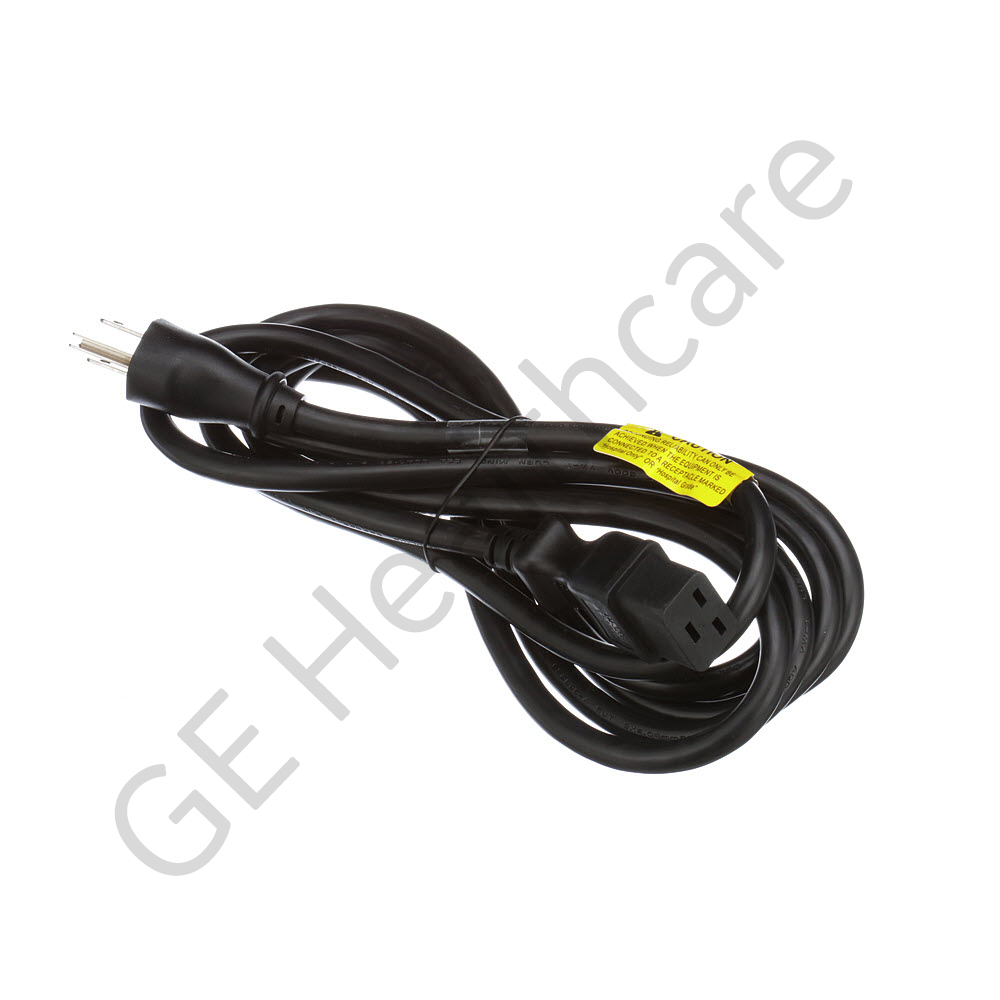

The North America Power Cord is used to supply power to medical components. It uses 3 conductor cables with black, white, green colors (or brown, light blue, green/yellow). The cable has a maximum temperature rating of 105˚C and is type SJT 3 x 2.08 mm which is a 14 AWG gauge cable. It has a voltage rating of 300V and flame rating of VW-1. The cord insulation is well tested with a high potential test of minimum 2000VAC between wire to wire and between the wires to the skin. The cord ground continuity is tested with 25AC current source for 2 seconds, showing maximum resistance of 0.1 ohms. The cord’s L and N continuity are tested with an AC current source which is minimum 75% of the rating of the cord for 2 seconds, showing max resistance of 0.1 ohms for each wire. Over mold dimensions are shown for proper fastening of connector to product. The cord has id labels and caution labels. It is packed in a plastic bag, heat sealed, labeled and placed into carton.
Additional Features
- Safe packaging
- Durable and aesthetic
- Plugs marked for easy usage
Compatible Products
LOGIQ 9
LOGIQ E9
The LOGIQ* E9 is a versatile general imaging system that helps meet a wide variety of general imaging needs. As healthcare evolves and ultrasound exams become more in demand, you need the ability to adapt to the changing environment with an ultrasound system that gives you flexibility, ease of use, speed and reliability.
The LOGIQ E9 can help you:
Deliver extraordinary image quality on a broad spectrum of patient body types.
Visualize blood flow without the limitations of Doppler
Enhance your workflow.
Integrate real-time ultrasound with previously acquired CT, MR, PET, or ultrasound images.
Visually track your position during a scan.
Vivid 7
The Vivid 7/Vivid 7 PRO ultrasound unit is a high performance digital ultrasound imaging system.The system provides image generation in 2D (B) Mode, Color Doppler, Power Doppler (Angio), M-Mode, Color M-Mode, PW and CW Doppler spectra, Tissue Velocity imaging and Contrast applications. The fully digital architecture of the Vivid 7/Vivid 7 PRO unit allows optimal usage of all scanning modes and probe types,throughout the full spectrum of operating frequencies.The Vivid 7 Dimension gives clinicians a better way to convey their findings to other cardiologists, referring physicians,EP physicians and patients. Now, cardiac anatomy,synchronicity and viability can be clearly communicated in imaging formats that are more familiar for your clinical partners, thus easier to understand.
• Real-time 4D imaging – provides more cardiac information to help clinicians better communicate the heart’s structure and function.
• 4D Tissue Synchronization Imaging (TSI) – propels Tissue Velocity Imaging (TVI) to the next level by taking three simultaneous planes – from a single heartbeat at high frame rates – to create a flexible, dynamic 4D model with quantitative measurements to better communicate cardiac dyssynchrony.
• Bull’s-eye report formats and TSI surface mapping –communicate cardiac dyssynchrony in a visual display that should be more familiar to EP physicians.
• Blood Flow Imaging (BFI) – new vascular imaging mode gives clinicians a better understanding and delineation of directional blood flow in vessels.
• Seamless measurement integration – allows you to efficiently calculate ejection fraction and volumes from tri-plane images gathered from the same heartbeat.
Equivalent Item(s):
Below is more information on the equivalent item(s). Items without a hyperlink are listed for reference only and are not available for purchase online.
| Equivalent Item(s) | Item Details |
|---|---|
| 2162856 | 2162856 |
